Product Introduction
The T-20 Gel Casting System is characterized by its compact size, convenient storage and access, quick installation, and portability. It is compatible with various glass gel plates such as 0.75mm, 1.0mm, and 1.5mm. This product can be used for rapid gel making and batch gel making in laboratories.
Product Features

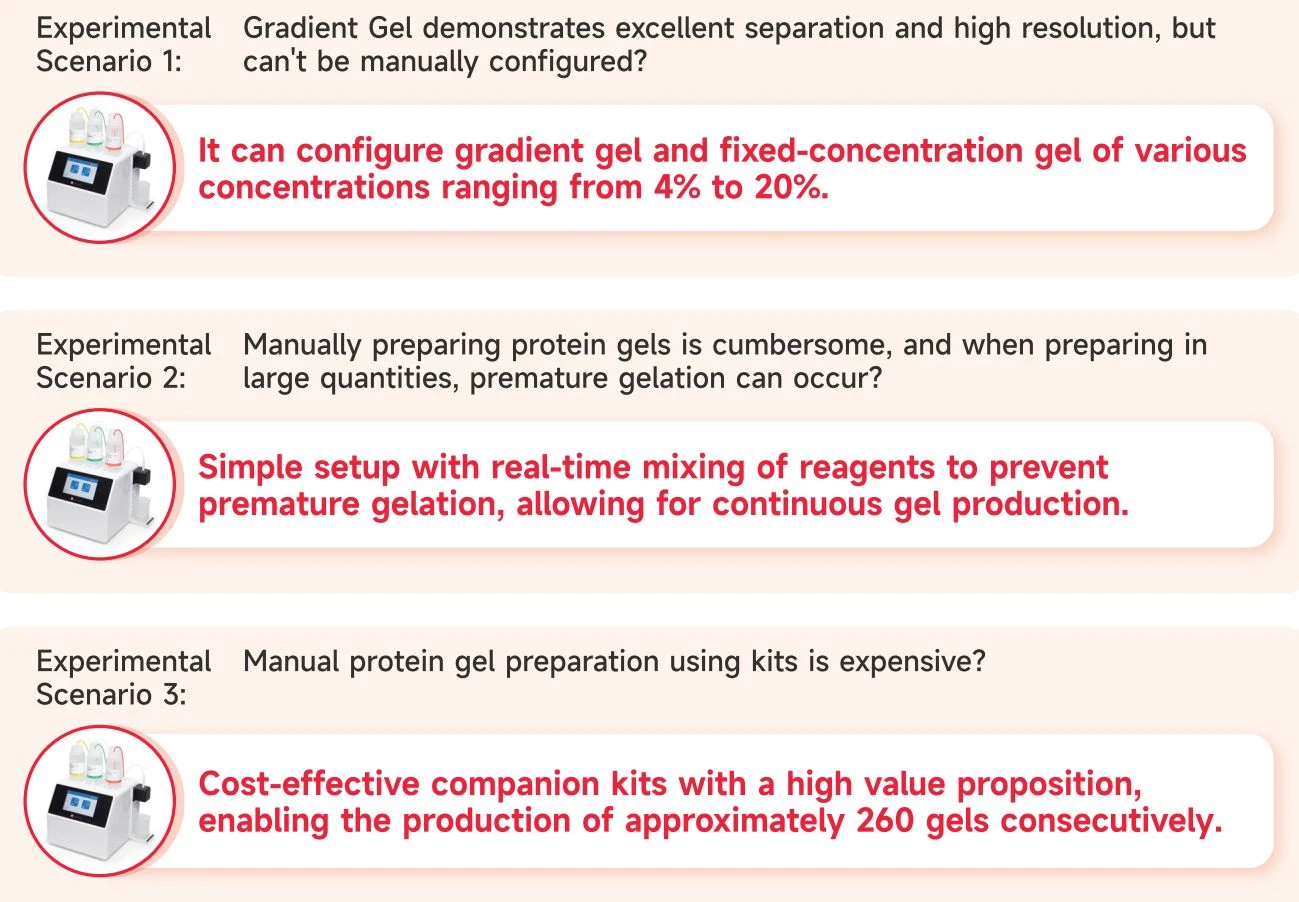

It can prepare gradient gels and isocratic gels of various concentrations ranging from 4% to 20%;
Simple settings, real-time mixing of reagents to avoid premature coagulation, and continuous gel preparation;
The supporting reagent kit can continuously prepare about 260 gels.
|
Product Name |
Gel Casting System |
|
Cat.No. |
T-20 |
|
Applications |
Production of polyacrylamide gradient gels for Western Blot process |
|
Gel Concentration Range |
4%～20% |
|
Gel Specifications |
Mini-sized gel, thickness of 0.75mm/1.0mm/1.5mm |
|
Gel ElectrophoresisTime |
≤30s per gel |
|
Reagent Bottle Rack |
4×500mL wide-mouth round-shouldered reagent bottles (3 for reagents, 1 for cleaning) / 1×waste liquid cup (500mL beaker) |
|
Automatic Cleaning |
Supports automatic flushing of mixing lines during gel filling intervals to prevent gelation, and one-button cleaning of lines |
|
Automatic Pre-filling |
Supports automatic filling of gel filling lines |
|
Fault Indication |
Equipped with fault indication function |
|
Operation Mode |
7-inchEnglish color LCD touch screen |
|
Operating Environment Temperature |
10℃ to 40℃ |
|
Input Voltage |
100~240VAC, 50/60Hz |
|
Rated Power |
270W |
|
Dimensions |
305×305×270mm |
|
Weight |
12Kg |
Product Structure
