Product Introduction

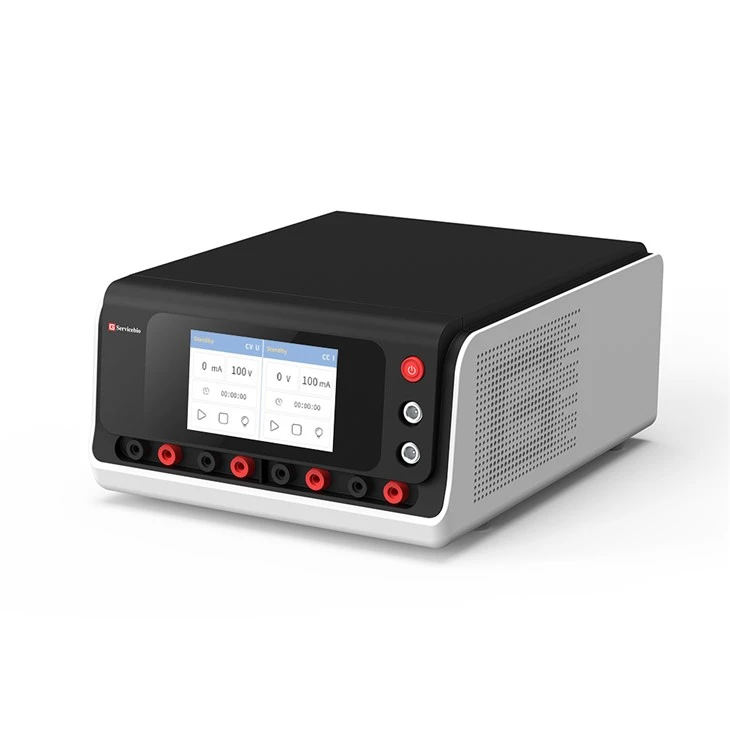

This product is a rectifier that converts alternating current into direct current. It can convert alternating current into controllable constant voltage and constant current direct current to meet the needs of electrophoresis and other experimental production. It is widely used in biology, medicine and other fields, such as nucleic acid gel electrophoresis, Protein gel electrophoresis, Western Blot protein transfer and other experiments.
Product Features
1. Completely independent dual outputs, with the ability to set parameters separately.

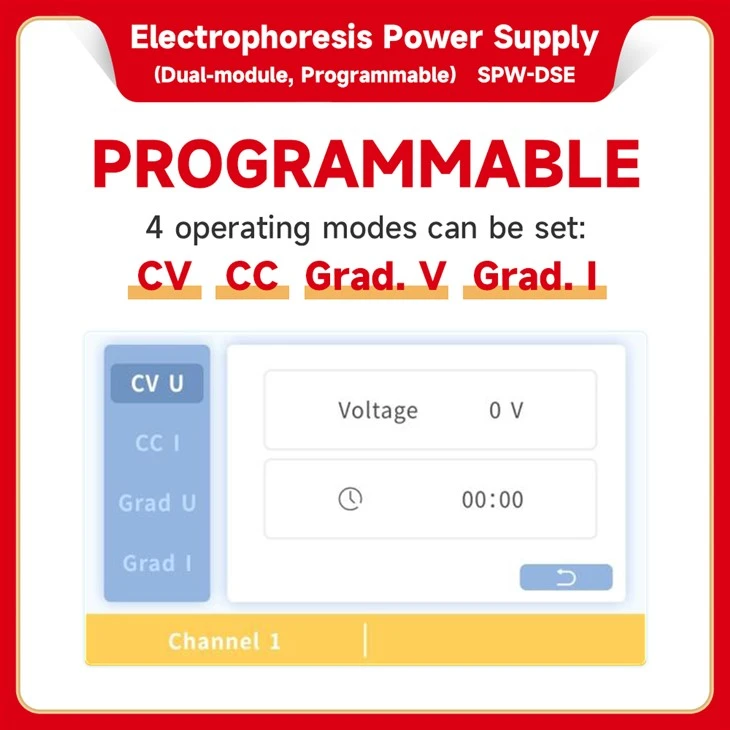

2. Programmable function, capable of setting four working modes: constant voltage, constant current, voltage gradient, and current gradient.

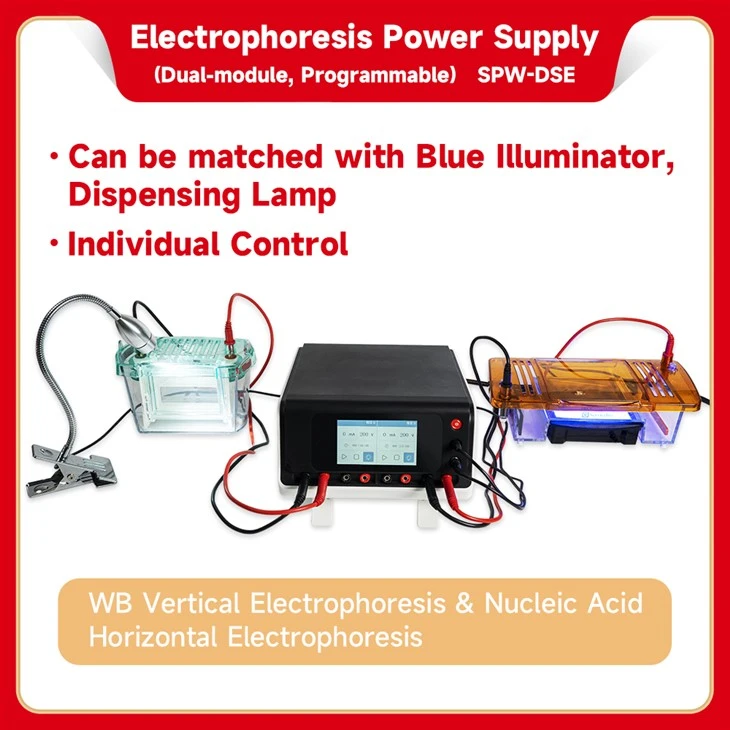

3. Additional two sets of 12V outputs, suitable for use with blue light illuminator, gel loading lamps, and can be controlled separately.

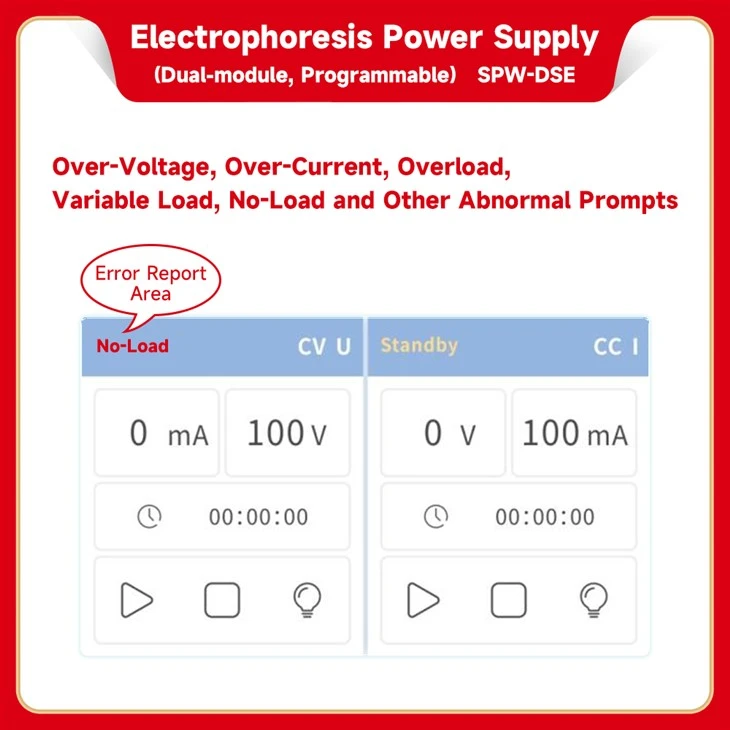

4. Equippend with multiple abnormality alerts, including overvoltage, overcurrent, overload, variable load, and no load.
Parameter Comparison
|
Item Code |
SPW-DSE |
SPW-6S |
|
Channel |
Independent dual channels, a total of 6 groups of output ports. |
Single channel, a total of 6 groups of output ports. |
|
Terminal |
The left and right sets of independent dual power supply outputs can also be independently controlled without interfering with each other. |
Output port parallel output. |
|
Temperature |
4-35℃ |
4-40℃ |
|
Parameters |
500V,500mA,250W |
600V,600mA,300W |
|
Voltage Range |
6-500V |
6-600V |
|
Current Range |
6mA-500mA |
6mA-600mA |
|
Type |
Constant voltage, constant current, gradient voltage, gradient current |
Constant voltage, constant current, gradient voltage, gradient current |
|
Timing Range |
0-99h60min |
0-99h60min |
|
Pause/Resume Function |
YES |
YES |
|
Programmable method |
Gradient voltage, gradient current, three steps |
Gradient voltage, gradient current, three steps |
|
Power off memory function |
YES |
YES |
|
Screen size |
4 inches |
4 inches |
|
Input power |
AC 180-240V/110-120V, 50/60HZ |
AC 180-240V/110-120V, 50/60HZ |
|

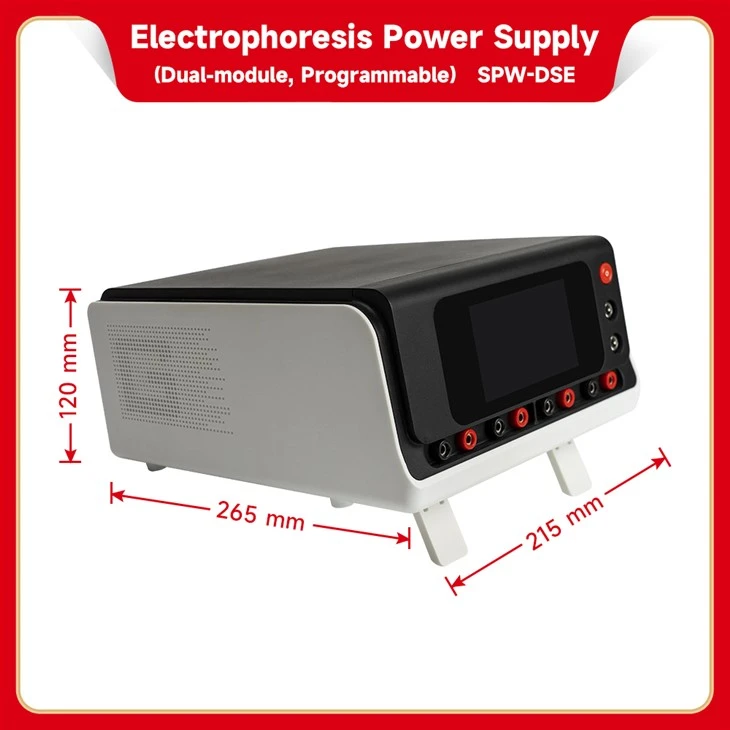

Size |
265*215*120mm |
265*215*120mm |
|
Net Weight |
2.25KG |
1.8kg |
| Cat.No. | SPW-DM | SPW-DSE | SPW-6S |
| Output Channels | Dual independent channels, 6 output ports | Dual independent channels, 6 output ports | Single channel, 6 output ports |
| Output Types | Constant voltage, constant current, gradient voltage, gradient current | Constant voltage, constant current, gradient voltage, gradient current | Constant voltage, constant current, gradient voltage, gradient current |
| Output Terminals | Left and right independent dual power supply outputs, with independent control and no interference | Left and right independent dual power supply outputs, with independent control and no interference | Output ports connected in parallel |
| Output Parameters | 600 V, 600 mA, 250 W+250W | 500 V, 500 mA, 250 W+250W | 600 V, 600 mA, 300 W |
| Output Voltage Range | 6 V-600 V | 6 V-500 V | 6 V-600 V |
| Output Current Range | 6 mA-600 mA | 6 mA-500 mA | 6 mA-600 mA |
| Timing Range | 0-99 h 60 min | 0-99 h 60 min | 0-99 h 60 min |
| Pause/Resume Function | Yes | Yes | Yes |
| Input Power | AC 180-240V, 50/60HZ | AC 180-240V, 50/60HZ | AC 180-240V, 50/60HZ |
